M Series Residential 4

Features: Recessed, Adjustable, Wall Wash, Warm Dim, Multiple, Emergency, Decorative

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500​ lm (16.5W)

Color Quality: 93+ CRI, 2-step SDCM

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, 90°+ General Ambient, Linear, Soft Focus

Dimming: 0-10V 1%, TRIAC/ELV 1%, Lutron EcoSystem 1%. DALI-2 0.1%

Input: 120/277V

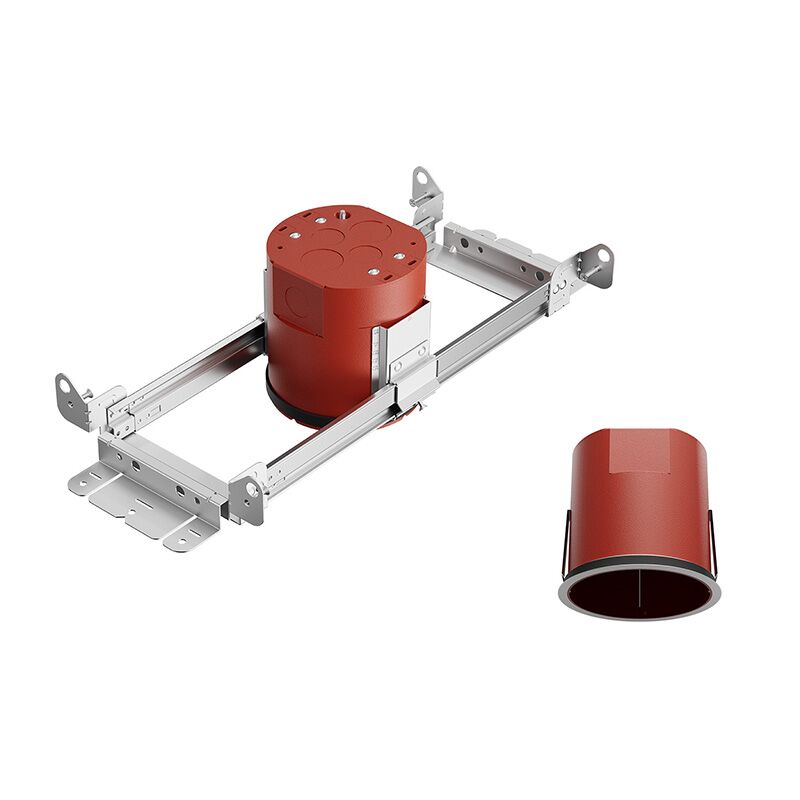

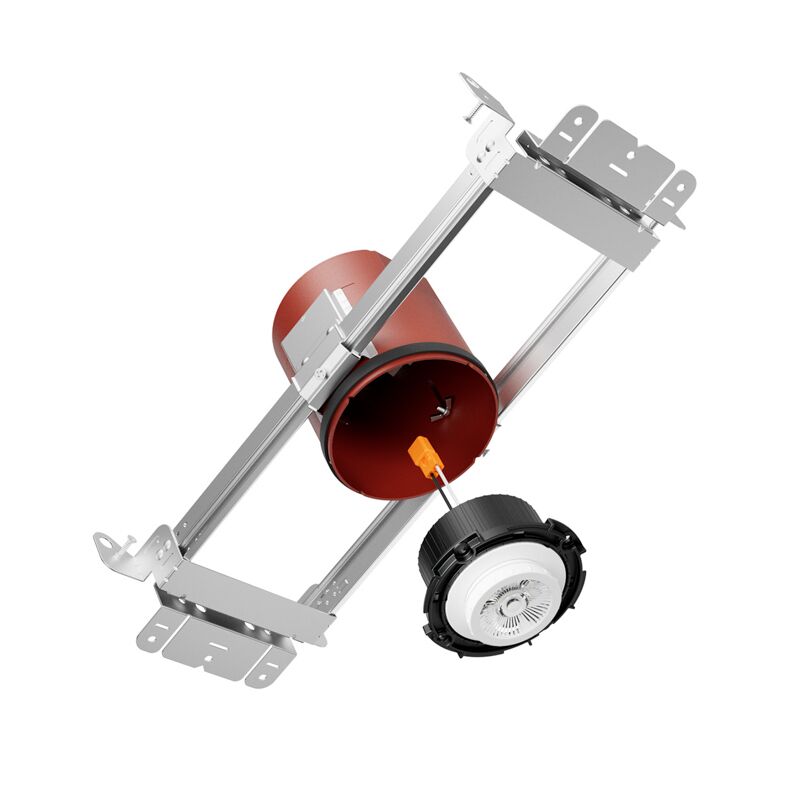

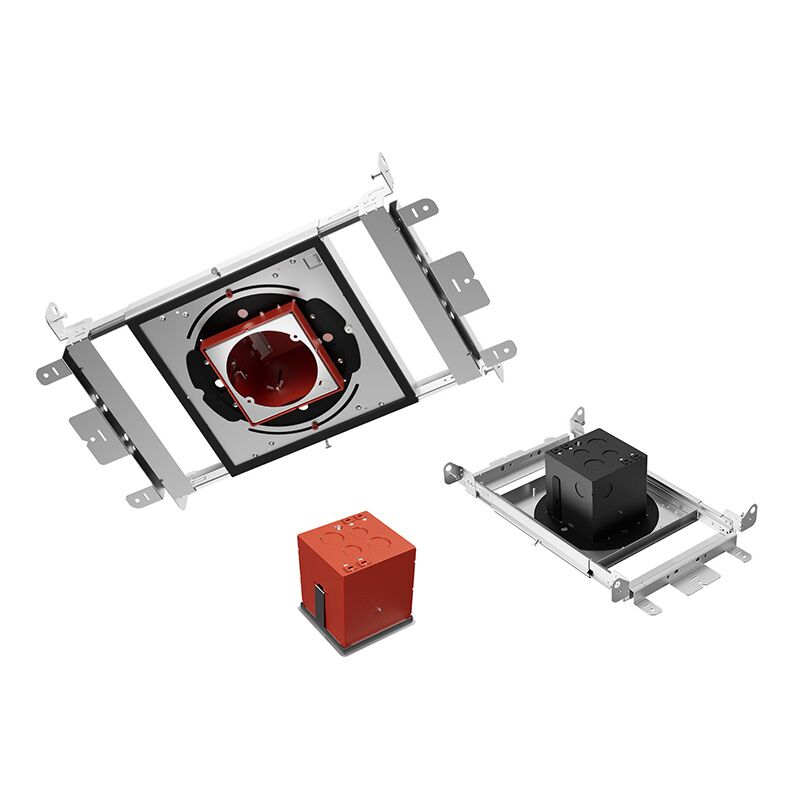

Installation: New Construction, Remodel, Retrofit, Shallow Plenum, Concrete, Wood/Millwork, Flangeless Mud-In

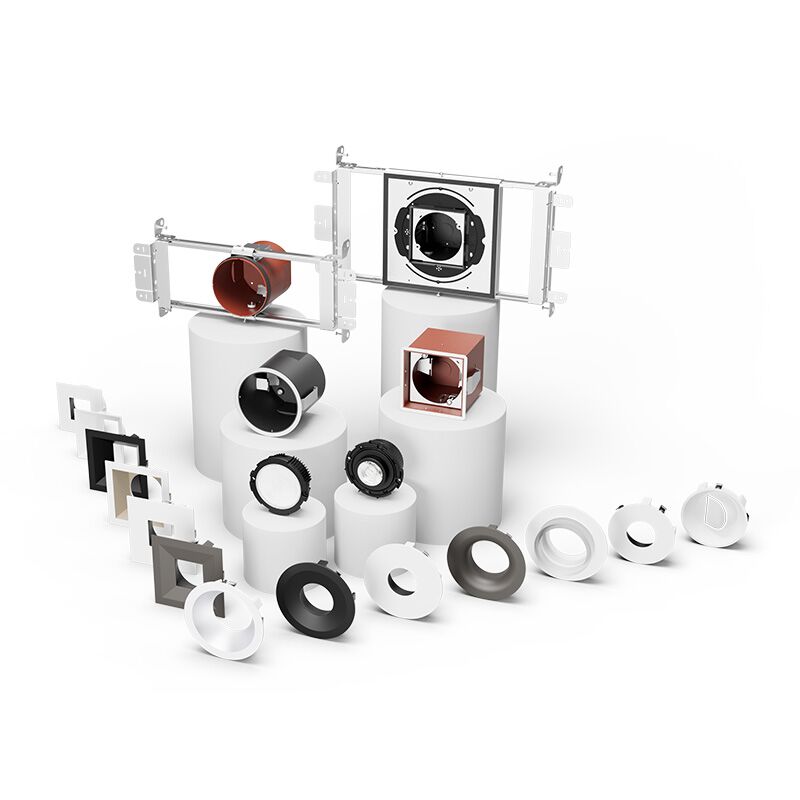

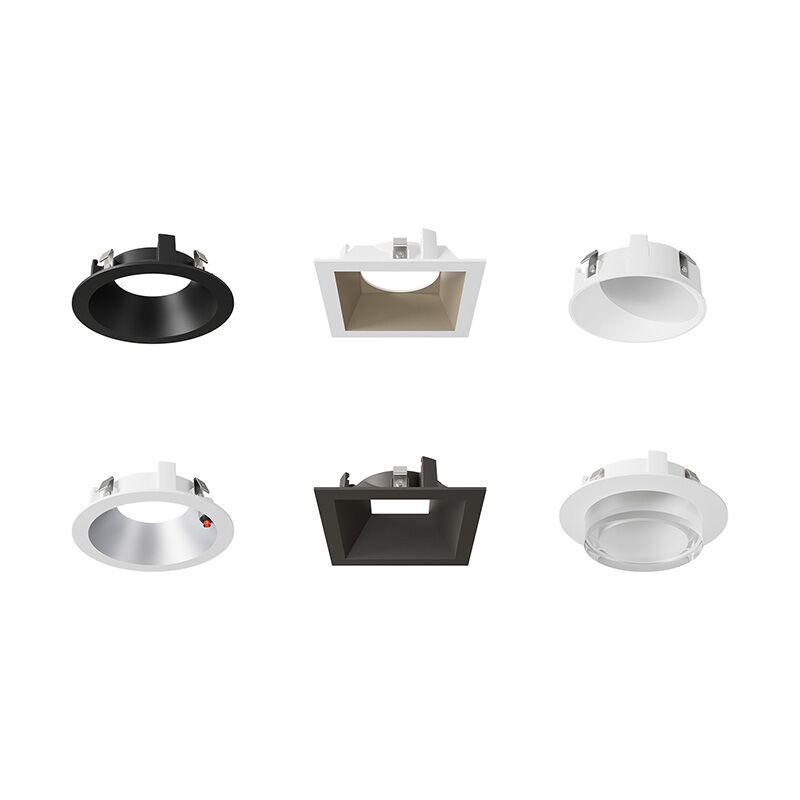

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Emergency, Non-Conductive Dead Front

Finish: White, Black, Bronze, Clear Diffuse, Warm Diffuse, Custom

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC, NSF/ANSI 2 Splash Zone Safe

Warranty: 5 year; 50,000 hours
