Model No. CH-MASD0524-30

Low Profile 6” LED Surface Mount Disc

Description

The 6 inch surface mount LED downlight is a low profile installation solution designed to fit the tightest of spaces. The driverless DOB driver onboard technology allows this fixture to fasten to most 3 or 4 inch round, octagon or square junction box or shallow pan box eliminating the need for recessed housing. ETL certification and suitable for exterior wet locations. This fixture is classified as a directional light source.

  1. Finish: White

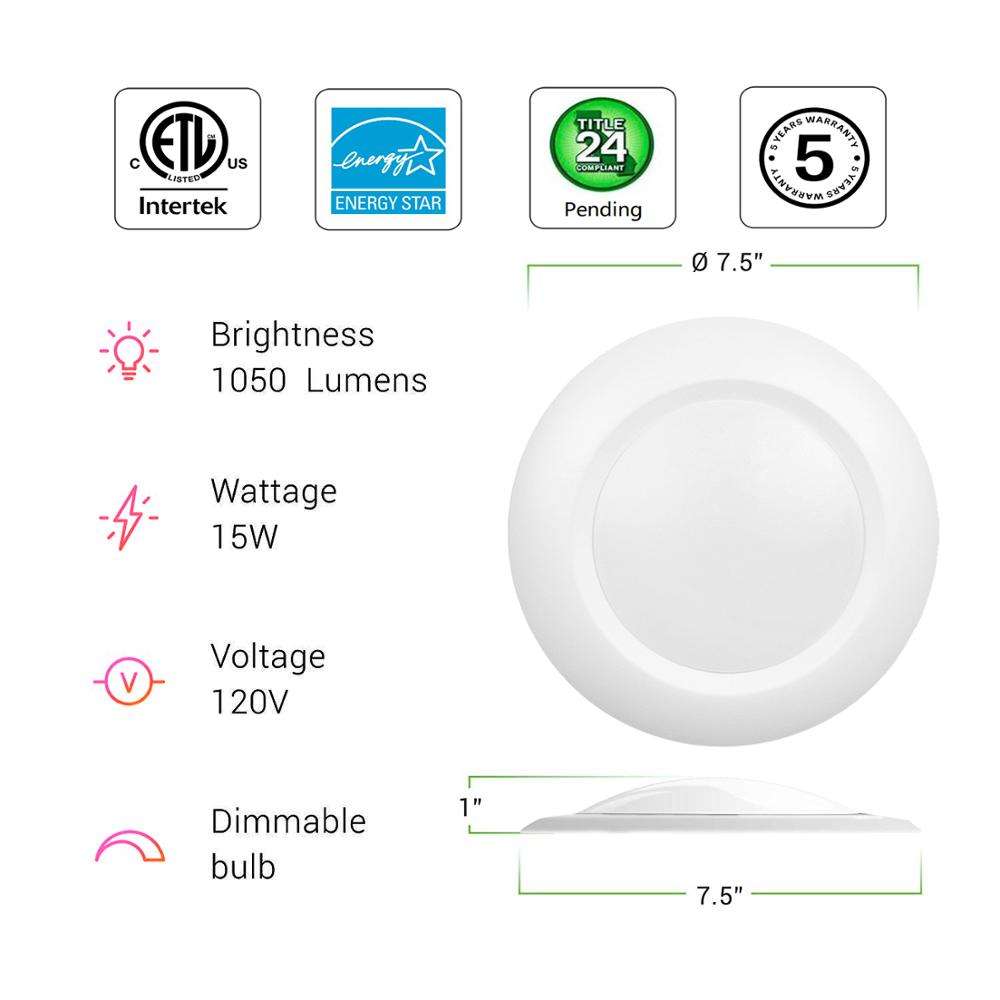

  2. Dimensions: Diameter 7.43” x Height 1.09”
  3. Weight: 0.45 lbs.

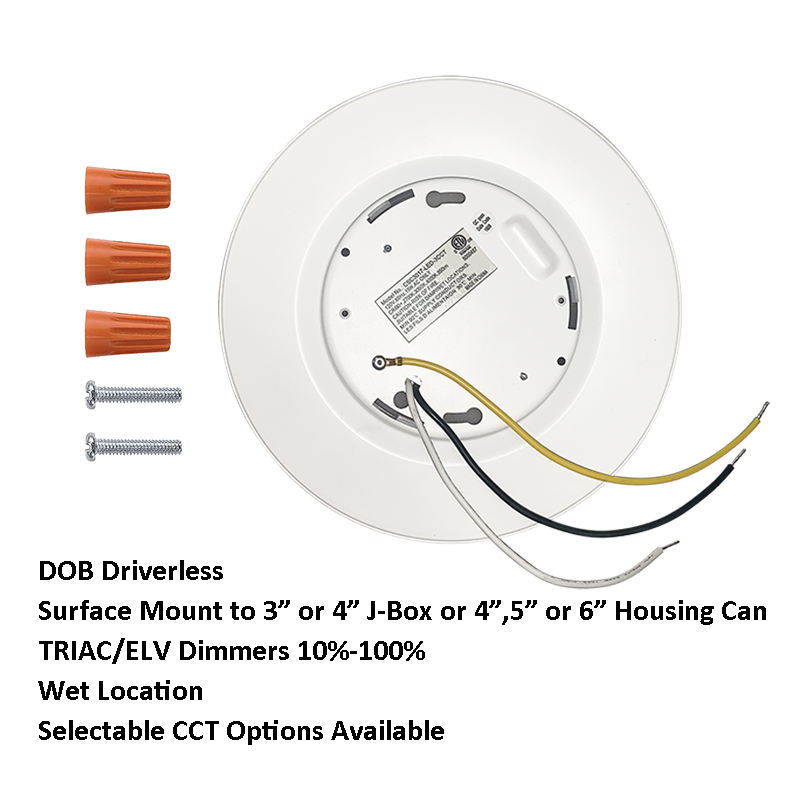

  • Easy to install: fits all standard 3” or 4” J-box
  • Suitable for wet locations
  • Die Cast Aluminum
  • Five-year warranty
  • Accessories available for 4”, 5”, 6” recessed housing
  • 50,000 rated hours
  • Ceiling or wall mount
  • Integrated LED carefully designed with the highest quality LED chips for superior performance

Specifications

Nominal Wattage

15W
Input Voltage:

120V
Dimming

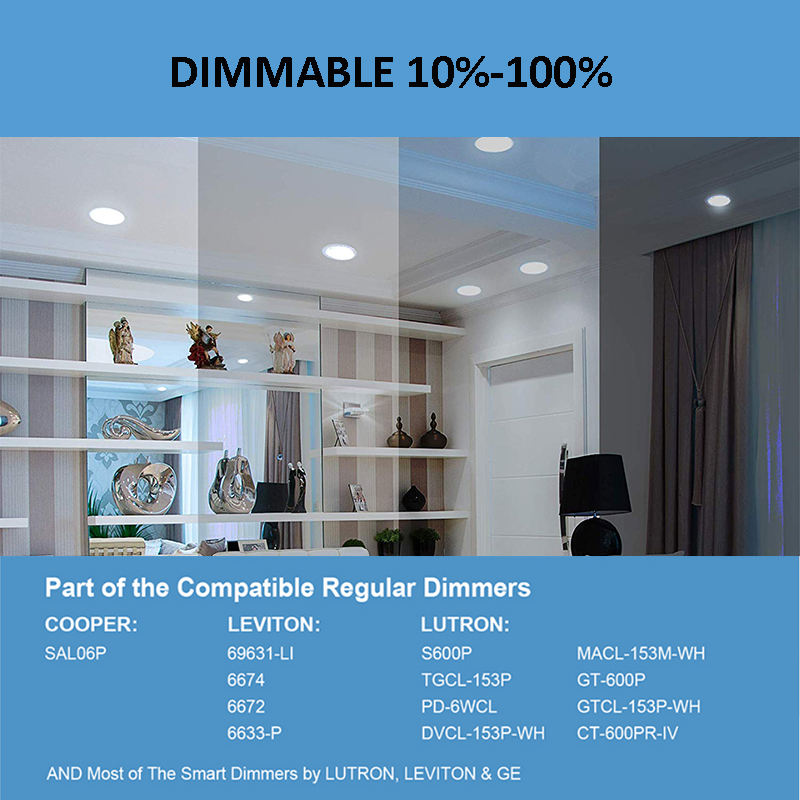

Dimmable (Triac/ELV 10 – 100%)
Environment

Indoor Outdoor (wet location)
Color Temp

3000K (also available in 2700K, 4000K,5000K)
Lumens

1200
CRI

> 90
Certificates

cETLus
Operating Temp

-4 to 104 F
Download Spec Sheet
